Mineral Insulated RTD Sensor with IP67 heavy duty cast iron head - Pt100 Sensors

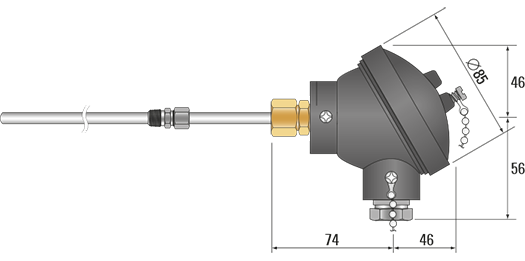

Mineral Insulated Resistance Thermometer (RTD, Pt100)
with IP67 Heavy Duty Cast Iron Head

Related Products

Thermowells

Related Products

Compression Fittings
  • Two styles of sensor are available; Type 17's, our most popular style, are economical, semi flexible and suited to a wide variety of industrial applications up to 930°F/500°C. Type 18's are best suited for applications up to 1110°F/600°C or where a high accuracy element is incorporated
  • Custom built to your specification and terminated in a weatherproof cast iron screw top terminal head with the tube entry and Wire entry at a right angle to each other. Suitable for simplex, duplex and triplex assemblies. Supplied complete with 20mm x 1.5mm ISO metal pinch gland on Wire entry for Wire from 0.118" to 0.315" diameter
  • Alternatively, we have a large range of sensors available to buy online in various diameters and lengths
  • High accuracy, repeatability and reproducibility as simplex, duplex or triplex element assemblies
  • Wide operating temperature range of -148°C to +1112°F (-100ºC to +600ºC).
  • Available in 2, 3 and 4 wire configurations, in grade B, A, 1/3, 1/5 or 1/10 accuracy
  • 316L Stainless Steel sheathed and manufactured to IEC 60751
Sheaths can generally be bent and twisted to suit the application (do not bend within 2 inches of the tip)

RTD Enquiry Form

1. Sensor Style
2. No. of Elements and Ro Value

Number of Elements Select
Simplex (1 element)
Duplex (2 elements)
Triplex (3 elements)

Resistance value at 0ºC:

3. Tolerance of Element

  Tolerance of Element
(IEC 60751 for Pt100)
Select
Grade Accuracy
@ 0ºC
Accuracy
@ 100ºC

B ±0.30°C ±0.80°C
A ±0.15°C ±0.35°C
1/3 ±0.10°C ±0.27°C
1/5 ±0.06°C ±0.16°C
1/10 ±0.03°C ±0.08°C
Note: 130Ω elements are only
available in Grade B
4. Wiring Configuration

  Wiring Configuration
(IEC 60751)
Select
2 2 wire
3 3 wire (most popular)
4 4 wire
4BL 4 wire blind loop
5. Sheath Diameter
6. Sheath Length
 inches
7. Optional Compression Fitting
8. Optional 4 to 20mA Transmitter
9. Quantity Required

Contact Details

Company Name


Your Name


Email


Telephone


Additional Information

If your enquiry is for more than one style of sensor, please email us with your requirements or use the box below



Send Enquiry
Resistance thermometers manufactured within a few days!
Click here for RTD Pt100 Sensors Custom Built to your Specification.

BACK TO TOP
Products

Contact Us

About TC

FREE Guide

Privacy Policy

Terms and Conditions

Sitemap
FREE Wallchart Guide

Join over 500,000 engineers and buyers who have already received our FREE 74 page A3 Guide to Thermocouple and Resistance Thermometry

Company Name
  Address 1
Your Name
  Address 2
Title / Dept.
  State
Email
  ZIP Code
Telephone
  Country
Company Name
Your Name
Title / Dept.
Address 1
Address 2
State
ZIP Code
Country
Email
Telephone

We will only ever use the information you provide to occasionally contact you regarding our products and we will never disclose your details to a third party. Our privacy policy can be viewed here



I agree to the terms and conditions listed in the Privacy Policy

View our ISO 90001/2008 Certficate



© 2006- TC Measurement and Control Inc., PO Box 685, Hillside, IL 60162, United States
Tel.: 877 249 1777, Fax: 708 449 0777, Email: info@tc-inc.com



1 Sensor Style Temperature Range
17 Type 17 - Semi flexible, Mineral Insulated
Our most popular style
-100ºC to +500ºC
18 Type 18 - Semi flexible, Mineral Insulated
Good for high accuracy, high temp applications
-100ºC to +600ºC
Note: Some wiring and number of element configurations may not be available in all diameters
